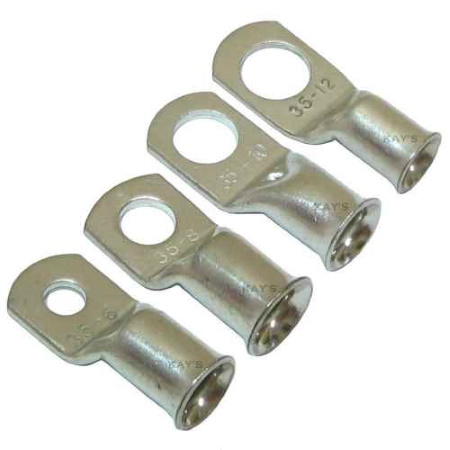

COPPER TUBE RING CRIMP TERMINALS



High quality electro tin plated terminals manufactured from seamless copper tube.

All terminals are provided with an inspection hole to ensure the cable is fully inserted before crimping.

            A bell mouth provides a smooth transition from lug to cable and eliminates chafing.

DescriptionPrice BreaksQtyBuy
6mm² to fit 6mm Stud - Copper Tube Terminal
6mm² to fit 6mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.09
6mm² to fit 8mm Stud - Copper Tube Terminal
6mm² to fit 8mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.09
6mm² to fit 10mm Stud - Copper Tube Terminal
6mm² to fit 10mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.09
10mm² to fit 6mm Stud - Copper Tube Terminal
10mm² to fit 6mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.11
10mm² to fit 8mm Stud - Copper Tube Terminal
10mm² to fit 8mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.11
10mm² to fit 10mm Stud - Copper Tube Terminal
10mm² to fit 10mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.11
10mm² to fit 12mm Stud - Copper Tube Terminal
10mm² to fit 12mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.11
16mm² to fit 6mm Stud - Copper Tube Terminal
16mm² to fit 6mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.14
16mm² to fit 8mm Stud - Copper Tube Terminal
16mm² to fit 8mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.14
16mm² to fit 10mm Stud - Copper Tube Terminal
16mm² to fit 10mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.14
16mm² to fit 12mm Stud - Copper Tube Terminal
16mm² to fit 12mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.14
25mm² to fit 6mm Stud - Copper Tube Terminal
25mm² to fit 6mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.18
25mm² to fit 8mm Stud - Copper Tube Terminal
25mm² to fit 8mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.18
25mm² to fit 10mm Stud - Copper Tube Terminal
25mm² to fit 10mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.18
25mm² to fit 12mm Stud - Copper Tube Terminal
25mm² to fit 12mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.18
35mm² to fit 6mm Stud - Copper Tube Terminal
35mm² to fit 6mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.23
35mm² to fit 8mm Stud - Copper Tube Terminal
35mm² to fit 8mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.23
35mm² to fit 10mm Stud - Copper Tube Terminal
35mm² to fit 10mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.23
35mm² to fit 12mm Stud - Copper Tube Terminal
35mm² to fit 12mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.23
50mm² to fit 6mm Stud - Copper Tube Terminal
50mm² to fit 6mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.27
50mm² to fit 8mm Stud - Copper Tube Terminal
50mm² to fit 8mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.27
50mm² to fit 10mm Stud - Copper Tube Terminal
50mm² to fit 10mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.27
50mm² to fit 12mm Stud - Copper Tube Terminal
50mm² to fit 12mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.27
70mm² to fit 6mm Stud - Copper Tube Terminal
70mm² to fit 6mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.53
70mm² to fit 8mm Stud - Copper Tube Terminal
70mm² to fit 8mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.53
70mm² to fit 10mm Stud - Copper Tube Terminal
70mm² to fit 10mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.53
70mm² to fit 12mm Stud - Copper Tube Terminal
70mm² to fit 12mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.53
95mm² to fit 8mm Stud - Copper Tube Terminal
95mm² to fit 8mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.62
95mm² to fit 10mm Stud - Copper Tube Terminal
95mm² to fit 10mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.62
95mm² to fit 12mm Stud - Copper Tube Terminal
95mm² to fit 12mm Stud - Copper Tube Terminal N/A
PRICE FOR
£0.62

Stated sizes are cable size in mm².

The internal tube diameter of each size is;

  •  6mm² = 4mm internal tube diameter.
  • 10mm² = 4.5mm internal tube diameter.
  • 16mm² = 5.5mm internal tube diameter.
  • 25mm² = 6.7mm internal tube diameter.
  • 35mm² = 8.6mm internal tube diameter .
  • 50mm² = 9.6mm internal tube diameter.
  • 70mm² = 12mm internal tube diameter.
  • 95mm² = 13.5mm internal tube diameter.
  • 120mm² = 15mm internal tube diameter.
  • 150mm² = 16.5mm internal tube diameter.
  • 185mm² = 18.5mm internal tube diameter.
  • 240mm² = 21mm internal tube diameter.


Our top quality terminals comply with BS EN 61238-1-2003
