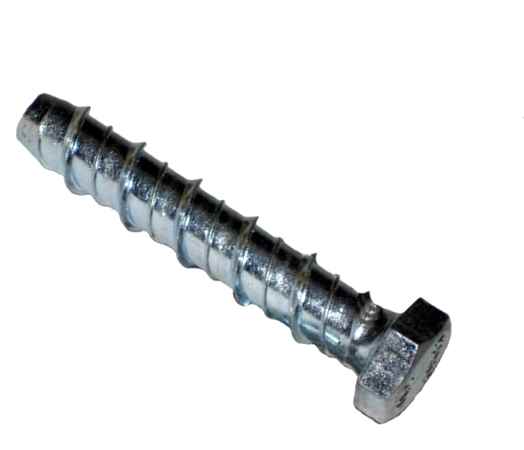

HEXAGON HEAD ANCHOR BOLTS

Anchorbolts fix directly to the substrate by cutting their own thread.

Non expansion fixing allows close to the edge placement and is totally removable.

Fixes along the entire thread length to enable fixing through hollow sections

No marking out required, fix straight through your fixture

Anchorbolts are suitable for use in concrete, brick, wood, marble, block, stone and more

Zinc plated steel

DescriptionPrice BreaksQtyBuy
M8 x 50mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
M8 x 50mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
PRICE FOR
£ 0.22
M8 x 75mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
M8 x 75mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
PRICE FOR
£ 0.27
M8 x 100mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
M8 x 100mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
PRICE FOR
£ 0.35
M8 x 130mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
M8 x 130mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
PRICE FOR
£ 0.42
M8 x 150mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
M8 x 150mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
PRICE FOR
£ 0.48
M10 x 60mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
M10 x 60mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
PRICE FOR
£ 0.32
M10 x 75mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
M10 x 75mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
PRICE FOR
£ 0.38
M10 x 100mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
M10 x 100mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
PRICE FOR
£ 0.48
M10 x 130mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
M10 x 130mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
PRICE FOR
£ 0.64
M10 x 150mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
M10 x 150mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
PRICE FOR
£ 0.71
M12 x 75mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
M12 x 75mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
PRICE FOR
£ 0.65
M12 x 100mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
M12 x 100mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
PRICE FOR
£ 0.83
M12 x 130mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
M12 x 130mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
PRICE FOR
£ 1.09
M12 x 150mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
M12 x 150mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
PRICE FOR
£ 1.42
M16 x 100mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
M16 x 100mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
PRICE FOR
£ 2.34
M16 x 150mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
M16 x 150mm HEXAGON HEAD ANCHOR BOLTS ZINC PLATED
PRICE FOR
£ 3.07



Specifications;

6mm Ankerbolts; drill 5mm hole size; thread outer diameter 6mm; shank diameter 5mm.

8mm Ankerbolts; drill 6mm hole size; thread outer diameter 8mm; shank diameter 6mm.

10mm Ankerbolts; drill 8mm hole size; thread outer diameter 10mm; shank diameter 8mm.

12mm Ankerbolts; drill10mm hole size; thread outer diameter 12mm; shank diameter 10mm.

14mm Ankerbolts; drill 12mm hole size; thread outer diameter 14mm; shank diameter 12mm.

16mm Ankerbolts; drill 14mm hole size; thread outer diameter 16mm, shank diameter 14mm.
