METRIC WING NUTS ZINC PLATED

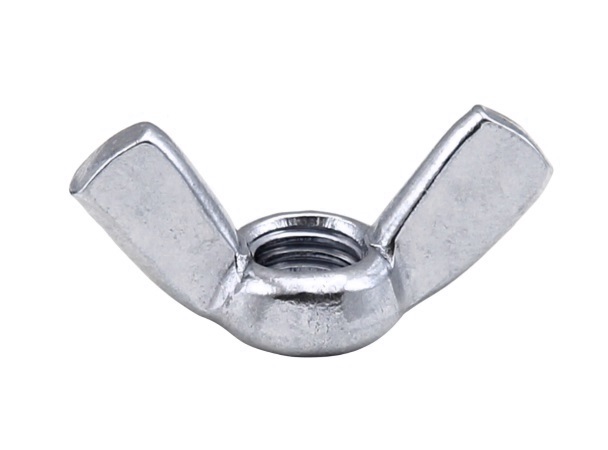

Wing nuts.

For low load applications where convenient hand tightening is sufficient.

Metric coarse threads.

Zinc plated steel.

DescriptionPrice BreaksQtyBuy
M3 WING NUT DIN 315 ZINC PLATED
M3 WING NUT DIN 315 ZINC PLATED
PRICE FOR
£ 0.08
M4 WING NUT DIN 315 ZINC PLATED
M4 WING NUT DIN 315 ZINC PLATED
PRICE FOR
£ 0.05
M5 WING NUT DIN 315 ZINC PLATED
M5 WING NUT DIN 315 ZINC PLATED
PRICE FOR
£ 0.05
M6 WING NUT DIN 315 ZINC PLATED
M6 WING NUT DIN 315 ZINC PLATED
PRICE FOR
£ 0.06
M8 WING NUT DIN 315 ZINC PLATED
M8 WING NUT DIN 315 ZINC PLATED
PRICE FOR
£ 0.09
M10 WING NUT DIN 315 ZINC PLATED
M10 WING NUT DIN 315 ZINC PLATED
PRICE FOR
£ 0.08
M12 WING NUT DIN 315 ZINC PLATED
M12 WING NUT DIN 315 ZINC PLATED
PRICE FOR
£ 0.19

M3
Thread pitch: 0.50mm
Overall width: 17.6mm
Overall height: 8.6mm

M4
Thread pitch: 0.70mm
Overall width: 17.6mm
Overall height: 8.6mm

M5
Thread pitch: 0.70mm
Overall width: 22.5mm
Overall height: 11mm

M6
Thread pitch: 1.00mm
Overall width: 27.8mm
Overall height: 13.6mm

M8
Thread pitch: 1.25mm
Overall width: 30.3mm
Overall height: 14.8mm

M10
Thread pitch: 1.50mm
Overall width: 36.2mm
Overall height: 17.3mm

M12
Thread pitch: 1.75mm
Overall width: 49.4mm
Overall height: 22.3mm

M16
Thread pitch: 2.00mm
Overall width: 58.3mm
Overall height: 30.8mm
