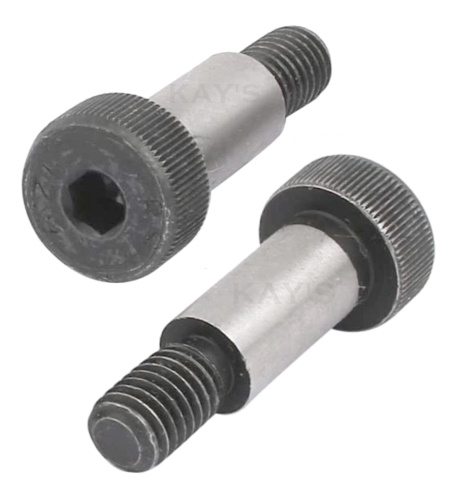

Socket Shoulder Bolts High Tensile 12.9

Grade 12.9 high tensile steel.
Manufactured in accordance with ISO 7379.
Self colour finish.
Shoulders are ground for close tolerance.
Dimensions are subject to manufacturing tolerances.

Important Information Regarding Sizes - Please Read
Each bolt size contains 3 dimensions
For example; "8mm (M6 Thread) x 25mm"
The first dimension is the diameter of the ground shoulder i.e. 8mm
The second dimension is the thread size i.e. M6
The third dimension is the length of the ground shoulder i.e. 25mm
Bolt lengths are measured from under the head and along the ground shoulder only
The length does not include the bolt head or the threaded section

DescriptionPrice BreaksQtyBuy
6mm (M5 Thread) x 10mm Socket Shoulder Bolts High Tensile 12.9
6mm (M5 Thread) x 10mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 2.37
6mm (M5 Thread) x 12mm Socket Shoulder Bolts High Tensile 12.9
6mm (M5 Thread) x 12mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 2.55
6mm (M5 Thread) x 16mm Socket Shoulder Bolts High Tensile 12.9
6mm (M5 Thread) x 16mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 2.81
6mm (M5 Thread) x 20mm Socket Shoulder Bolts High Tensile 12.9
6mm (M5 Thread) x 20mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 2.92
6mm (M5 Thread) x 25mm Socket Shoulder Bolts High Tensile 12.9
6mm (M5 Thread) x 25mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 3.03
6mm (M5 Thread) x 30mm Socket Shoulder Bolts High Tensile 12.9
6mm (M5 Thread) x 30mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 3.25
6mm (M5 Thread) x 35mm Socket Shoulder Bolts High Tensile 12.9
6mm (M5 Thread) x 35mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 3.69
6mm (M5 Thread) x 40mm Socket Shoulder Bolts High Tensile 12.9
6mm (M5 Thread) x 40mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 3.69
6mm (M5 Thread) x 45mm Socket Shoulder Bolts High Tensile 12.9
6mm (M5 Thread) x 45mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 3.73
6mm (M5 Thread) x 50mm Socket Shoulder Bolts High Tensile 12.9
6mm (M5 Thread) x 50mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 3.95
8mm (M6 Thread) x 12mm Socket Shoulder Bolts High Tensile 12.9
8mm (M6 Thread) x 12mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 3.25
8mm (M6 Thread) x 16mm Socket Shoulder Bolts High Tensile 12.9
8mm (M6 Thread) x 16mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 3.25
8mm (M6 Thread) x 20mm Socket Shoulder Bolts High Tensile 12.9
8mm (M6 Thread) x 20mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 3.62
8mm (M6 Thread) x 25mm Socket Shoulder Bolts High Tensile 12.9
8mm (M6 Thread) x 25mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 3.69
8mm (M6 Thread) x 30mm Socket Shoulder Bolts High Tensile 12.9
8mm (M6 Thread) x 30mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 3.69
8mm (M6 Thread) x 40mm Socket Shoulder Bolts High Tensile 12.9
8mm (M6 Thread) x 40mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 3.69
8mm (M6 Thread) x 50mm Socket Shoulder Bolts High Tensile 12.9
8mm (M6 Thread) x 50mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 3.95
8mm (M6 Thread) x 60mm Socket Shoulder Bolts High Tensile 12.9
8mm (M6 Thread) x 60mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 4.06
10mm (M8 Thread) x 16mm Socket Shoulder Bolts High Tensile 12.9
10mm (M8 Thread) x 16mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 3.47
10mm (M8 Thread) x 20mm Socket Shoulder Bolts High Tensile 12.9
10mm (M8 Thread) x 20mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 3.73
10mm (M8 Thread) x 25mm Socket Shoulder Bolts High Tensile 12.9
10mm (M8 Thread) x 25mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 3.72
10mm (M8 Thread) x 30mm Socket Shoulder Bolts High Tensile 12.9
10mm (M8 Thread) x 30mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 3.73
10mm (M8 Thread) x 35mm Socket Shoulder Bolts High Tensile 12.9
10mm (M8 Thread) x 35mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 3.83
10mm (M8 Thread) x 40mm Socket Shoulder Bolts High Tensile 12.9
10mm (M8 Thread) x 40mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 4.06
10mm (M8 Thread) x 45mm Socket Shoulder Bolts High Tensile 12.9
10mm (M8 Thread) x 45mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 4.24
10mm (M8 Thread) x 50mm Socket Shoulder Bolts High Tensile 12.9
10mm (M8 Thread) x 50mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 4.83
10mm (M8 Thread) x 60mm Socket Shoulder Bolts High Tensile 12.9
10mm (M8 Thread) x 60mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 4.93
12mm (M10 Thread) x 16mm Socket Shoulder Bolts High Tensile 12.9
12mm (M10 Thread) x 16mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 4.24
12mm (M10 Thread) x 20mm Socket Shoulder Bolts High Tensile 12.9
12mm (M10 Thread) x 20mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 4.28
12mm (M10 Thread) x 25mm Socket Shoulder Bolts High Tensile 12.9
12mm (M10 Thread) x 25mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 4.57
12mm (M10 Thread) x 30mm Socket Shoulder Bolts High Tensile 12.9
12mm (M10 Thread) x 30mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 4.79
12mm (M10 Thread) x 35mm Socket Shoulder Bolts High Tensile 12.9
12mm (M10 Thread) x 35mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 5.16
12mm (M10 Thread) x 40mm Socket Shoulder Bolts High Tensile 12.9
12mm (M10 Thread) x 40mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 5.27
12mm (M10 Thread) x 45mm Socket Shoulder Bolts High Tensile 12.9
12mm (M10 Thread) x 45mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 5.82
12mm (M10 Thread) x 50mm Socket Shoulder Bolts High Tensile 12.9
12mm (M10 Thread) x 50mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 5.93
12mm (M10 Thread) x 60mm Socket Shoulder Bolts High Tensile 12.9
12mm (M10 Thread) x 60mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 6.36
12mm (M10 Thread) x 70mm Socket Shoulder Bolts High Tensile 12.9
12mm (M10 Thread) x 70mm Socket Shoulder Bolts High Tensile 12.9
PRICE FOR
£ 6.77

6mm Shoulder Bolt
Shoulder Diameter - 6mm
Thread Diameter - 5mm (5mm)
Thread Pitch - 0.8mm
Thread length - 9.75mm
Head Diameter - 10mm
Head Height - 5mm
Allen Key Size - 3mm

8mm Shoulder Bolt
Shoulder Diameter - 8mm
Thread Size - M6 (6mm)
Thread Pitch - 1.0mm
Thread length - 11.25mm
Head Diameter - 12mm
Head Height - 6mm
Allen Key Size - 4mm

10mm Shoulder Bolt
Shoulder Diameter - 10mm
Thread Size - M8 (8mm)
Thread Pitch - 1.25mm
Thread length - 13.25mm
Head Diameter - 14mm
Head Height - 7mm
Allen Key Size - 5mm

12mm Shoulder Bolt
Shoulder Diameter - 12mm
Thread Size - M10 (10mm)
Thread Pitch - 1.5mm
Thread length - 16.4mm
Head Diameter - 20mm
Head Height - 8mm
Allen Key Size - 6mm
