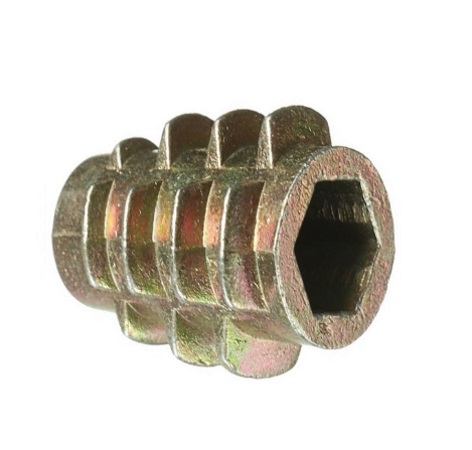

TYPE E THREADED WOOD INSERT

Threaded insert nuts provide a strong permanent thread for wood.

The type E insert has no flange at the head and can be set below the surface of the material or on curved surfaces.

They are installed by simply screwing the self tapping body into the material.

The unique external thread ensures strong resistance from pull out.

Standard metric coarse threads.

Manufactured from zinc plated die cast alloy.

Plating may be yellow or silver depending upon current stock.

DescriptionPrice BreaksQtyBuy
M4 x 10mm TYPE E THREADED WOOD INSERT NUTS
M4 x 10mm TYPE E THREADED WOOD INSERT NUTS
PRICE FOR
£ 0.11
M5 x 13mm TYPE E THREADED WOOD INSERT NUTS
M5 x 13mm TYPE E THREADED WOOD INSERT NUTS
PRICE FOR
£ 0.11
M6 x 10mm TYPE E THREADED WOOD INSERT NUTS
M6 x 10mm TYPE E THREADED WOOD INSERT NUTS
PRICE FOR
£ 0.13
M6 x 13mm TYPE E THREADED WOOD INSERT NUTS
M6 x 13mm TYPE E THREADED WOOD INSERT NUTS
PRICE FOR
£ 0.11
M6 x 20mm TYPE E THREADED WOOD INSERT NUTS
M6 x 20mm TYPE E THREADED WOOD INSERT NUTS
PRICE FOR
£ 0.13
M8 x 13mm TYPE E THREADED WOOD INSERT NUTS
M8 x 13mm TYPE E THREADED WOOD INSERT NUTS
PRICE FOR
£ 0.15
M8 x 20mm TYPE E THREADED WOOD INSERT NUTS
M8 x 20mm TYPE E THREADED WOOD INSERT NUTS
PRICE FOR
£ 0.14
M8 x 25mm TYPE E THREADED WOOD INSERT NUTS
M8 x 25mm TYPE E THREADED WOOD INSERT NUTS
PRICE FOR
£ 0.15



M4; thread pitch 0.7mm; required hole diameter 5.6mm - 6mm.

M5; thread pitch 0.8mm; required hole diameter 7.5mm - 7.9mm.

M6; thread pitch 1.0mm; required hole diameter 8.7mm - 9.1mm.

M8; thread pitch 1.25mm; required hole diameter 11.1mm - 11.5mm.
